Industrial heat sealers are built around a sealing zone that brings heat, pressure and film together. The replacement part is rarely specified safely by the machine name alone. The element form, heated length, terminals, support, cover and contact arrangement all matter.
This guide is for UK packaging engineers, maintenance technicians, production managers and procurement teams who need to identify a component before ordering. It covers industrial bag sealers, commercial bag sealers, commercial impulse sealers, vacuum packers, VFFS and flow-wrap equipment as application types. Heat Seal Components supplies component-level products, including heat-seal elements, custom heating elements, PTFE coating and heat-seal tape, sealing jaws and bars. It does not supply complete sealing machines Some searches use the terms industrial heat sealing machine, commercial heat sealer machine, industrial bag sealer, commercial bag sealing machine or commercial bag heat sealer. Use those labels to identify the application, not as proof that a generic component will fit..
Start with the sealing zone
An element is the resistance-heating part that produces heat in the sealing assembly. The film passes through the sealing zone while the jaw, bar or support surface controls contact. The exact arrangement varies between an impulse bar, a vacuum chamber bar and a VFFS or flow-wrap jaw.
Keep the machine manual and the original part available. A label such as industrial impulse sealer or commercial bag heat sealer is not enough to prove that a replacement is compatible.
Identify the heating arrangement
An impulse arrangement normally heats the element for the seal cycle. A constant-heat jaw or bar keeps its sealing surface at a controlled temperature. Those arrangements can use different profiles, insulation, covers, terminals and support details.
Fuji Impulse describes its replacement elements as model-specific consumables and lists equipment that is not compatible with older models. Its element guidance is a useful reminder to check the exact model and part arrangement before ordering.
Record compatibility before ordering
Use a short record before requesting a quote. Record each item in millimetres where it is a physical dimension:
- Machine manufacturer and model.
- Sealing method and jaw or bar type.
- Element form, such as round wire, flat ribbon, formed element or another known profile.
- Active heated length and overall length.
- Terminal type, terminal position and insulation details.
- PTFE cover or tape arrangement, support dimensions and fixing points.
- Clear photographs of the installed sealing zone and the removed part, plus any available drawing or part number.
Do not size by length alone
A replacement can have the same length as the old part and still be electrically or mechanically wrong. Kanthal’s resistance-heating handbook explains that resistance is directly proportional to length and inversely proportional to cross-sectional area. Resistivity also changes with temperature.
That is why procurement records should include the element form and section, not only a single length. If the material or resistance is known from the machine documentation, include it. Do not guess a specification from a photograph.

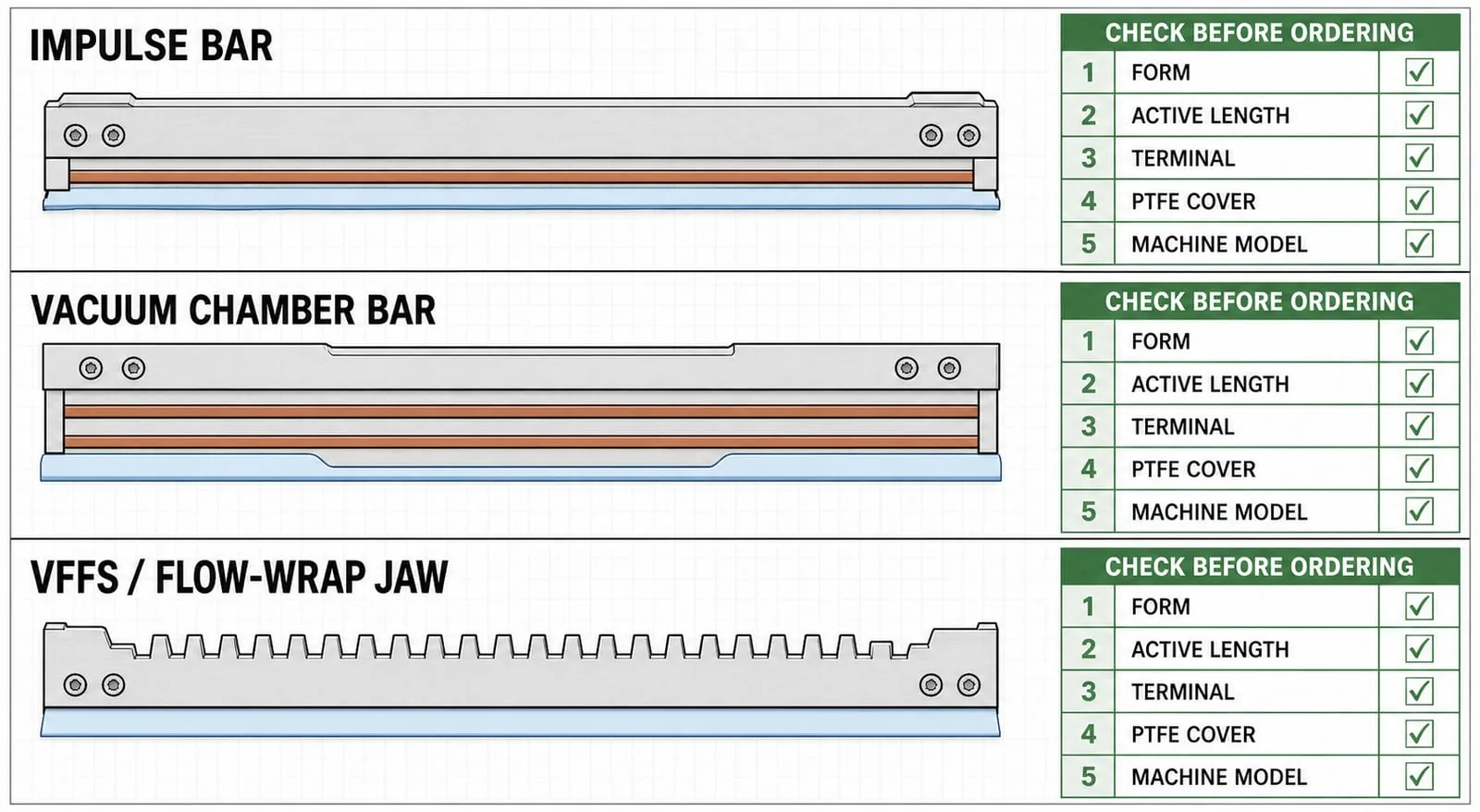

Match the component to the machine application
Geometry is part of compatibility. An element for a hand-operated impulse bar should not be assumed to fit a vacuum chamber or a VFFS or flow-wrap jaw. The fixing method, active area, terminals and PTFE cover can all differ even when the sealing width looks similar.
Heat Seal Components’ services overview covers component requirements for bag sealers, vacuum packers and flow-wrap machinery. Its heat-seal elements service is a better starting point than selecting a generic part from the machine description alone.
When a custom element is the safer route
A custom element is worth considering when the old part is damaged, there is no readable part number, the terminal arrangement is unusual or the profile does not match a standard replacement. Send the machine model, photographs, a sketch and measured dimensions so the component can be checked against the assembly.
Heat Seal Components’ custom impulse heat-seal elements service explains the made-to-order route and the use of plated ends for suitable requirements. Treat any stated specification as a point to confirm against your machine, not as a universal fit.

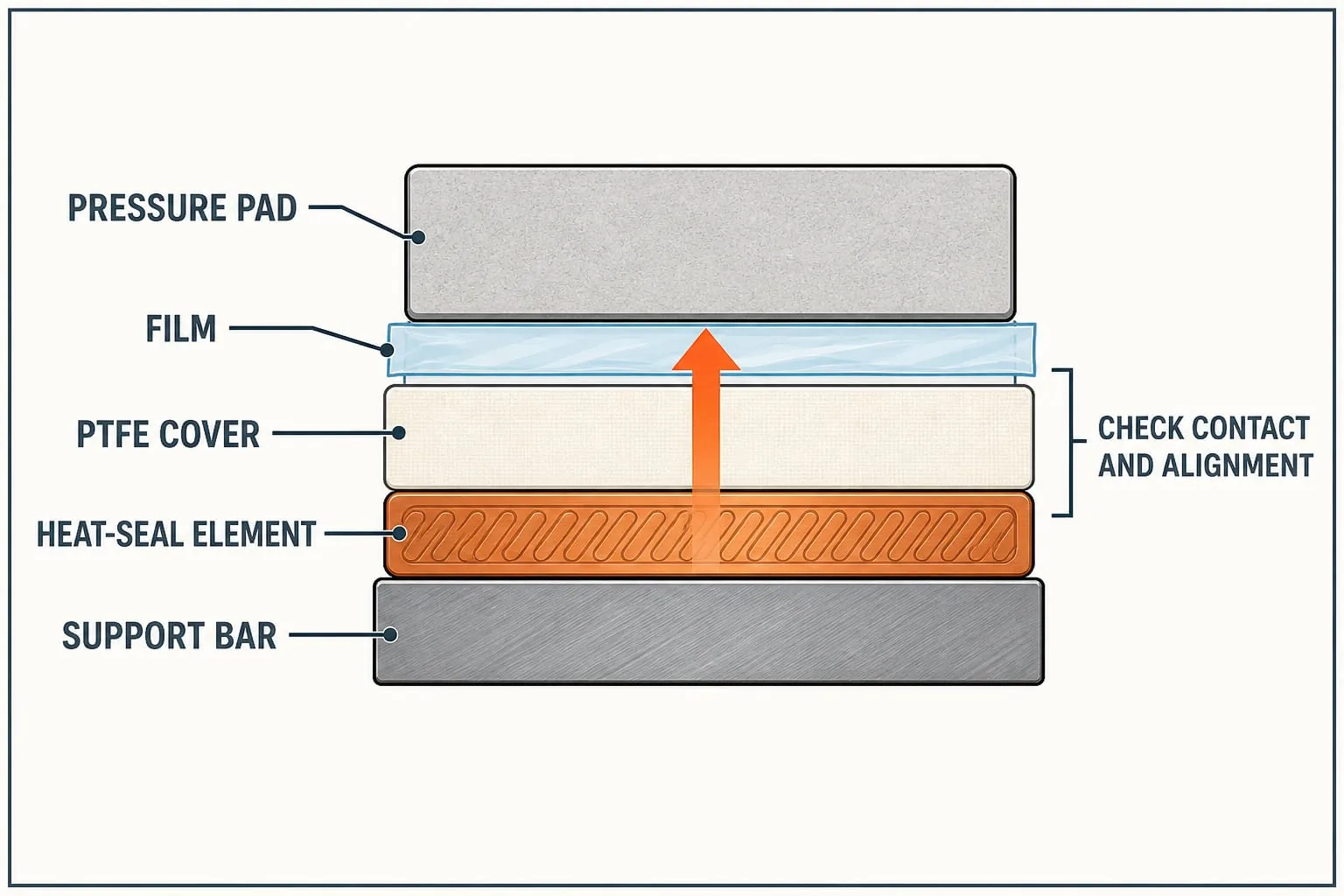

Check the jaw, bar and PTFE contact surface
A correct element can still produce a poor seal if the support, pressure pad or PTFE cover is damaged, contaminated or misaligned. Look for film pickup, a loose cover edge, exposed heating material and uneven contact across the active length.
Heat Seal Components provides sealing jaws and bars and PTFE heat-seal tape for component-level replacement and coating requirements. Check the cover and support condition as part of the same inspection rather than replacing the element in isolation.
Plan maintenance around safety and evidence
Maintenance should be planned using the machine manufacturer’s instructions and carried out by competent people. The HSE maintenance guidance says that equipment should be powered down and isolated before work, with stored energy controlled and hot parts allowed to cool.
The HSE PUWER overview also highlights safe maintenance, isolation from energy sources and suitable training. Follow your site safe system of work, lock-off procedure and risk assessment. This article is not a substitute for those controls.

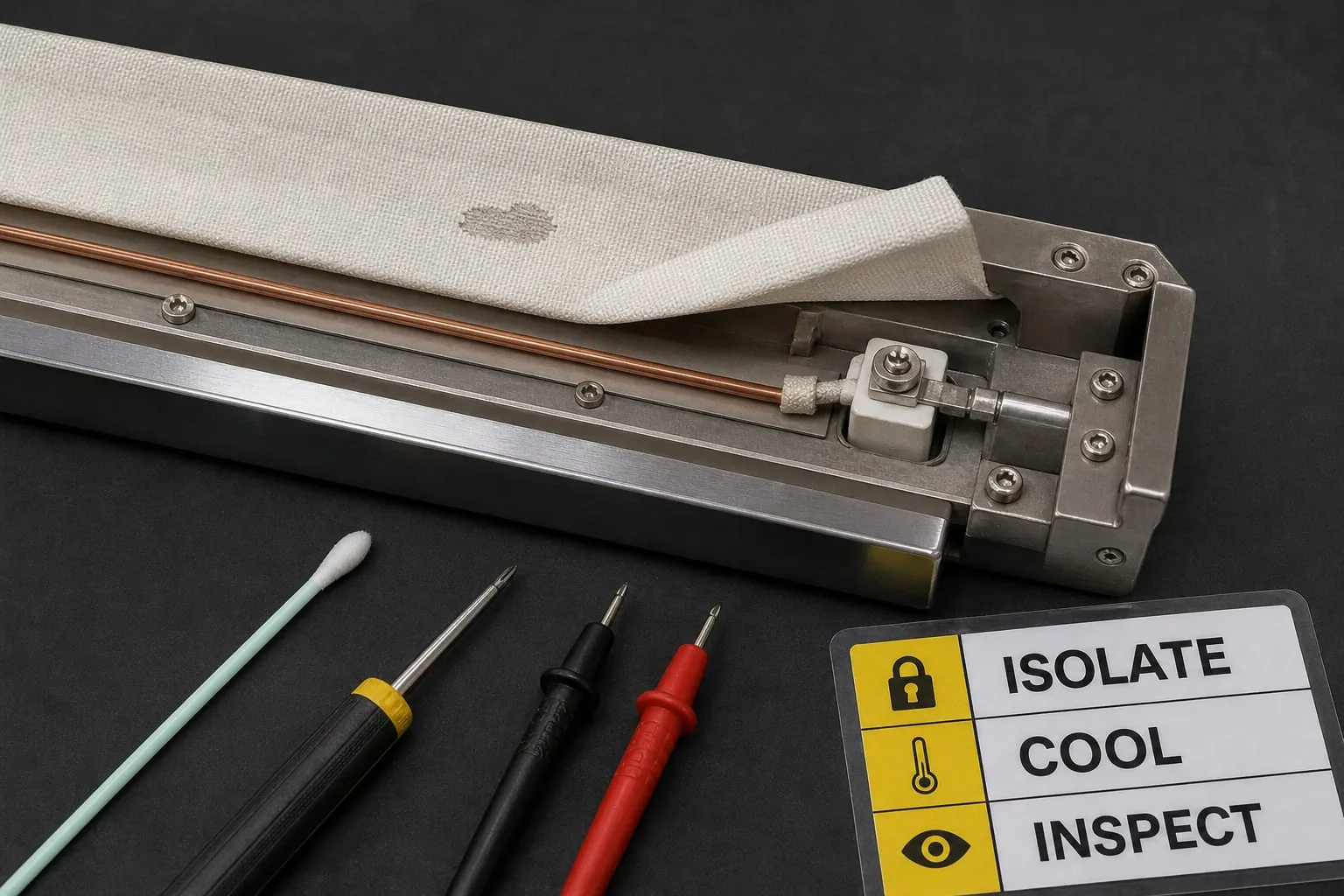

Inspect the parts, not just the symptom
Inspect the PTFE cover for wear, contamination, loose edges or areas where the heating part is exposed. Check the element for a break, flattening, offset or a change in its seated profile. Check terminals and insulators for heat damage, looseness or signs of arcing.
Inspect the jaw or support for film pickup and damage. Check the pressure pad and return mechanism for even contact across the sealing length. Do not apply a fixed inspection interval without considering the machine manual, duty cycle, packaging material and site risk assessment.
Use seal evidence before changing parts
An uneven, weak, scorched or incomplete seal is evidence to investigate, not proof that the element is the only fault. Record the symptom, the material being sealed and the relevant machine settings from the manual. Compare the old component with the assembly before removing it.
After a replacement, follow the manufacturer’s procedure and check sample seals under controlled conditions. If the result changes, record what was changed and retain the old part until the cause is understood. This helps distinguish an element issue from a pressure, cover, alignment or control issue.
A practical replacement record
- 1. Machine make, model and serial or reference number if available.
- 2. Application type: impulse, vacuum pack, VFFS or flow-wrap.
- 3. Element form, material if known, active heated length and overall length.
- 4. Terminal, insulation and fixing details.
- 5. PTFE cover or tape, jaw and support details.
- 6. Photographs of the installed sealing zone and removed part.
- 7. The fault observed and any change that happened before failure.
This record reduces back-and-forth and gives a component supplier useful evidence for checking the request. It also creates a traceable basis for future maintenance and procurement.
Speak to a component specialist
If you need a replacement component for an industrial heat sealer, send the machine model, clear photographs and measured dimensions. Contact Heat Seal Components with the sealing-zone details so the requirement can be reviewed before a quote is prepared.
